Hot rolled / cold rolled alloy 2205 duplex stainless steel
Quick Detail
2205 stainless steel plate
| Name | 2205 stainless steel sheet | Brand | AUTO KUMPO/TISCO/BAOSTEEL |
| size | 1219mm 1500mm 1800mm | surface | 2B, BA, HL, 8K mirror, PVC coated |
| thickness | 0.6-30mm | Certificate | SGS, BV |
duplex stainless steel 2205 sheet/plate/coil
Description
AUTO KUMPO brand duplex stainless steel plate 2205, duplex stainless steel 2205
Details about our stainless steel sheet products:
| 1. Product: | Duplex stainless steel 2205 sheet/plate/coil |
| 2. Thickness: | 0.6-30mm |
| 3. Width: | 10mm~1800mm |
| 4. Surface: | Shiny surface, 2B,NO.4 HL BA NO.8 8K , any color |
| 5. Standard: | ASTM A240 |
| 6 Finishing: | Cold rolled + annealed |
| 7. Materials: | 2205, S31803 (F51), S32205 (F60), 32750 (F53), S32760 (F55) |
| 8. Material origin: | TISCO, POSCO, LISCO, ZPSS, Bao steel, Krupp etc |
| 9. Application: | Gasket industry, pipe, power cable & oil well, shipbuilding, gas engineering. |
| 10. Coil ID: | 300MM, 400mm, 500mm as per customers’ request |
| 11. Coil weight: | as per client’s requirement. |
| 12. Delivery time | Be ready for shipment within 15~20 days upon receipt PO |

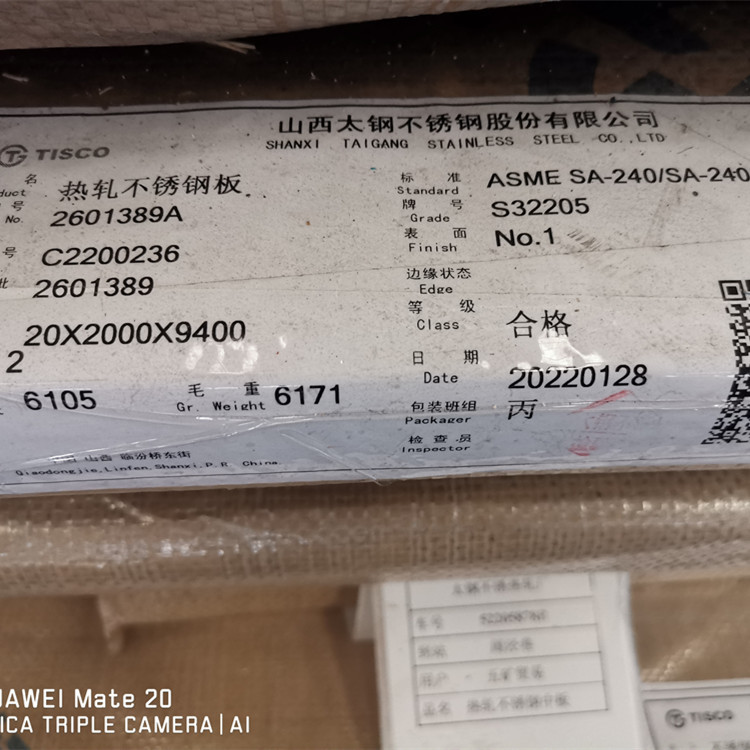

| 12. Package: | Plywood boxes. ( See pictures below ) |
| 13. Certificate: | ISO, BV, SGS, Mill test certificate |
Applications
- Pressure vessels, tanks, piping, and heat exchangers in the chemical processing industry
- Piping, tubing, and heat exchangers for the handling of gas and oil
- Effluent scrubbing systems
- Pulp and paper industry digesters, bleaching equipment, and stock-handling systems
- Rotors, fans, shafts, and press rolls requiring combined strength and corrosion resistance
- Cargo tanks for ships and trucks
- Food processing equipment
- Biofuels plants
Specifications
duplex stainless steel plate material S31803, duplex steel plate 2205
Corrosion Resistance
2205 duplex stainless steel is a cost effective solution for many applications where the 300 series stainless steels are susceptible to chloride stress corrosion cracking. Stress corrosion cracking occurs when stainless steels are subjected to tensile stress, while in contact with solutions containing chlorides. Increasing temperatures also increase the susceptibility of stainless steels to stress corrosion cracking.
The combination of chromium, molybdenum and nitrogen convey the good resistance of 2205 to chloride pitting and crevice corrosion. This resistance is extremely important for services such as marine environments, brackish water, bleaching operations, closed loop water systems and some food processing applications. The high chromium, molybdenum and nitrogen contents of 2205 provide corrosion resistance superior to common stainless steels, such as, 316L and 317L in most environments
Chemical Composition, %
| Cr | Ni | Mo | C | N |
| 22.0-23.0 | 4.50-6.50 | 3.00-3.50 | .030 Max | 0.14-0.20 |
| Mn | Si | P | S | Fe |
| 2.00 Max | 1.00 Max | .030 Max | .020 Max | Balance |
Density(g/cm3) : 7.98
Advantage of our company
- 1. Expertise: 10 years of manufacture: we know how to properly handle every step of production.
- 2. Competitive price: We produce resin and paint by ourself, which greatly reduce our cost!
- 3. Materials: All color Steel Sheets are made of high-quality raw materials.
- 4.Certificate: Our products are certified by TUV, ISO9001:2008,ISO14001:2004 etc.
- 5. Productivity: We have three large-scale production line, to guarantee all your orders will be finished in earlist time
Product Tags:
|
|

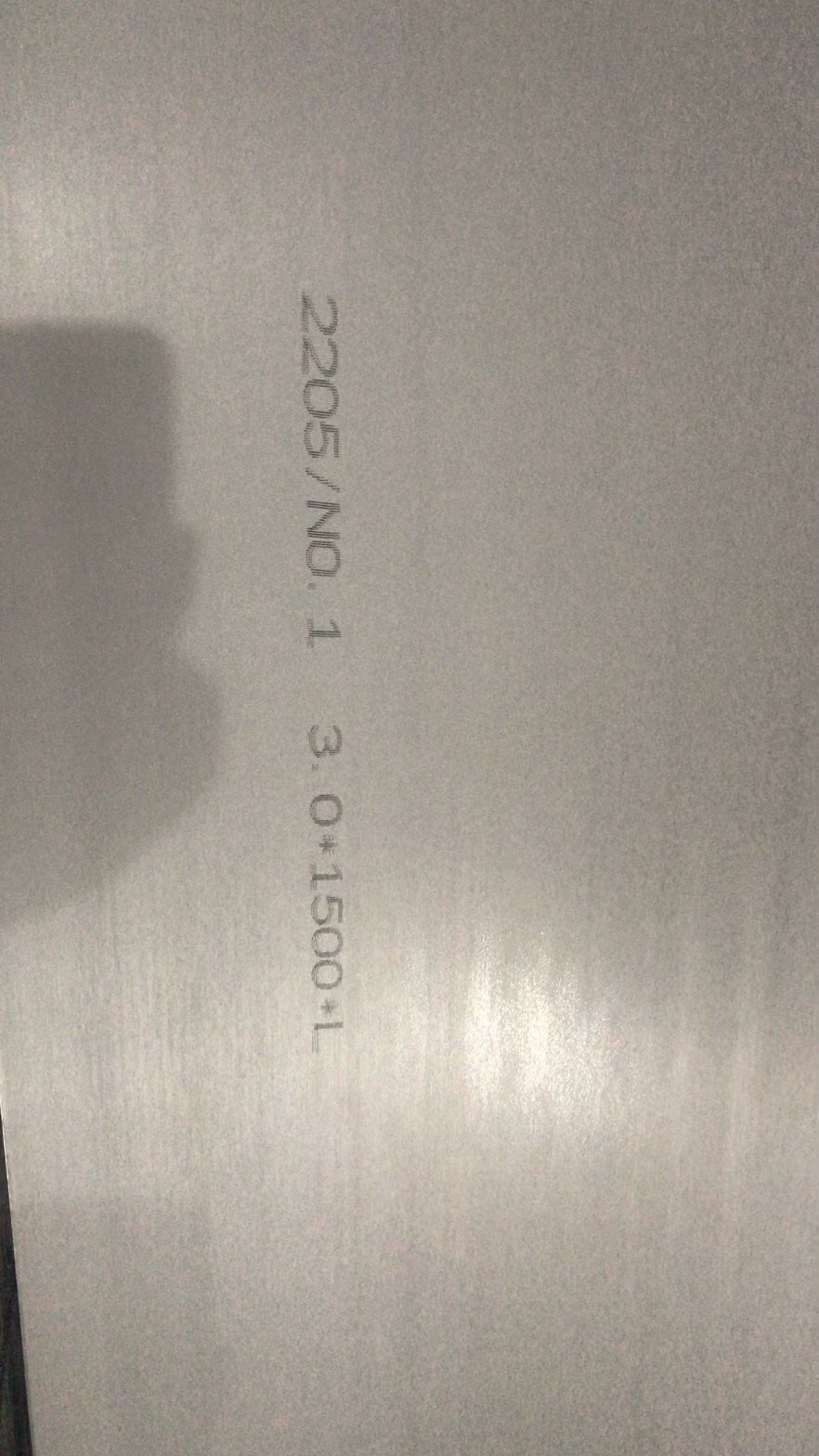

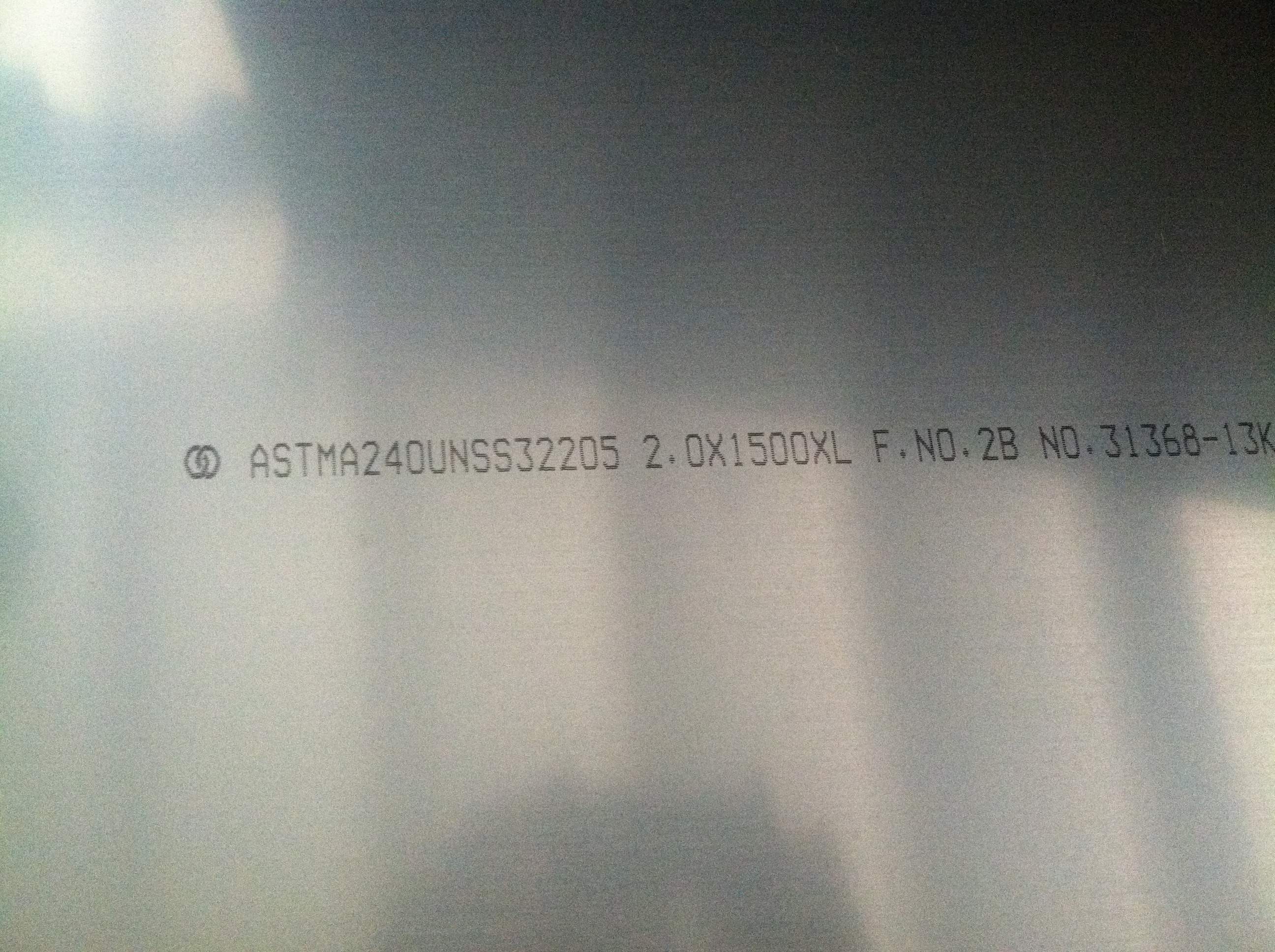

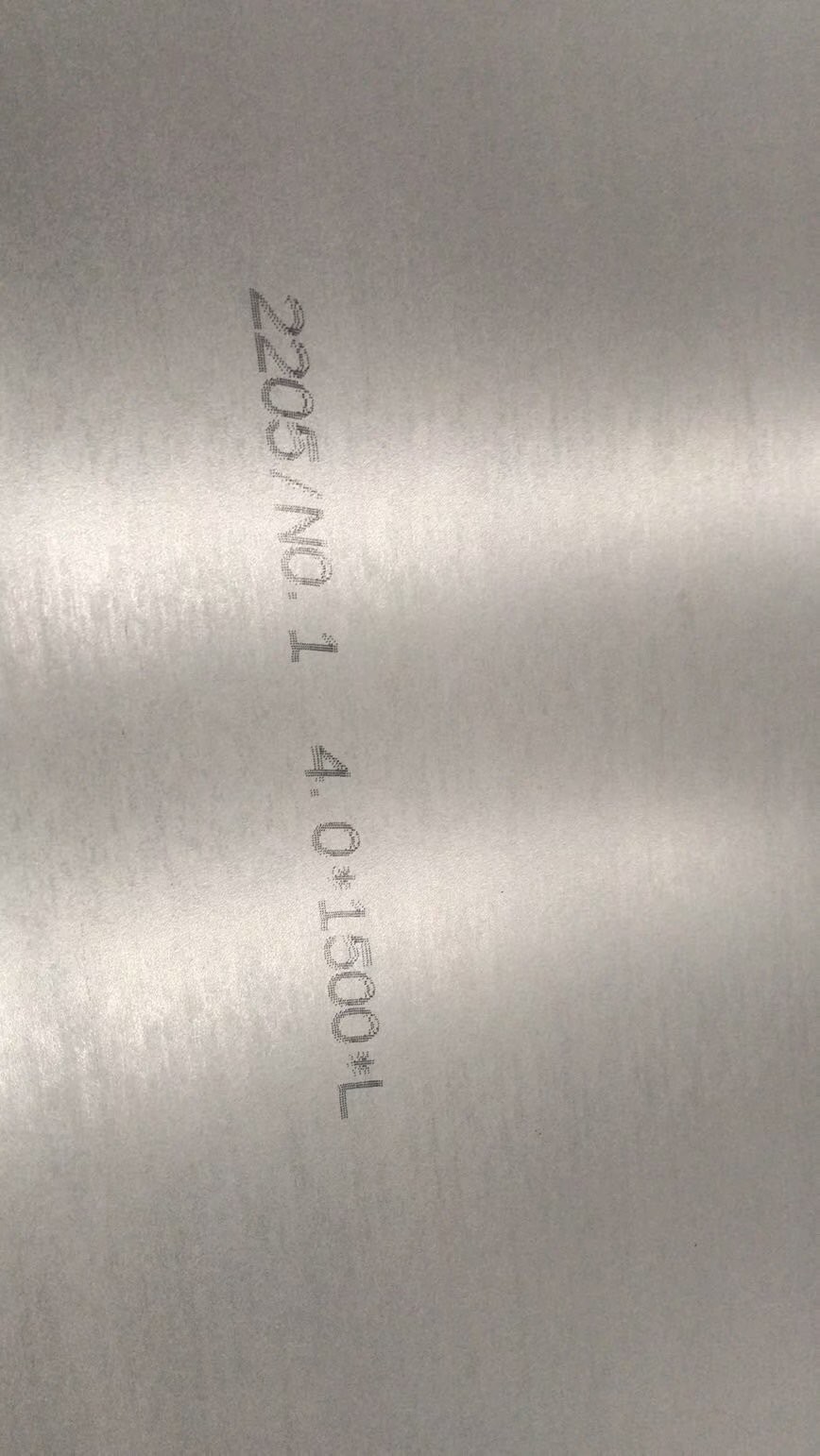

Hot Rolled Alloy 2205 S32205 S31803 20mm Duplex Stainless Steel Plate Images
|
