DUPLEX S32750 Stainless Steel Flat Bar , 2507 Flat Metal Bar 1-20mm Thickness

  • 1
  • 2

Brand Name : Mittel

Model Number : S32750

Certification : SGS BV,ISO

Place of Origin : Jiangsu Wuxi

MOQ : 2 tons

Price : 3650 USD/Ton

Payment Terms : L/C, T/T

Supply Ability : 500tons per month

Delivery Time : 10 days

Packaging Details : export packing

width : 20-300mm

thickness : 1-20mm

Length : 2000-6000mm

Grade : S32750

Surface : 2B,NO.1,NO.4

Type : Flat

Contact Now

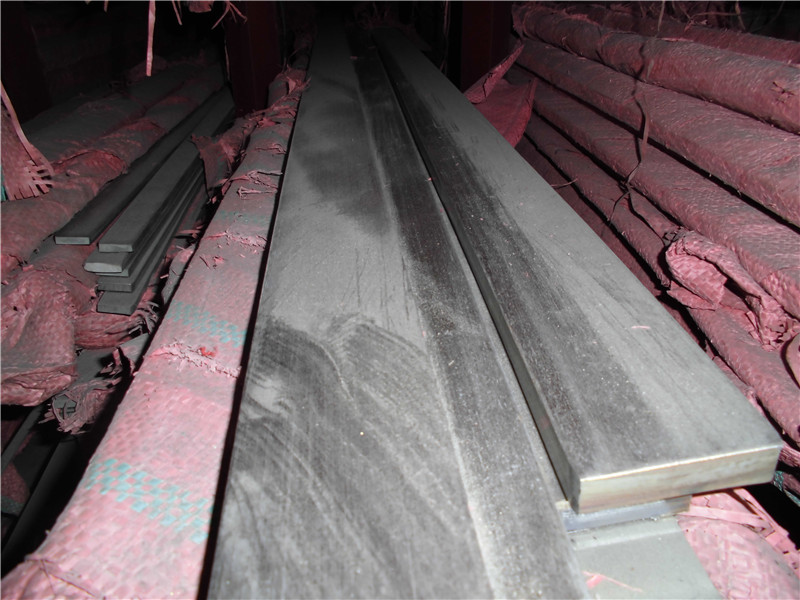

DUPLEX FLAT BAR S32750 Stainless Steel Flat Bar ,2507 Flat Metal  Bar

Duplex stainless steel

Duplex stainless steel offers excellent resistant to corrosion and very high mechanical strength. The high corrosion resistance of duplex stainless steel ensures significantly more uptime than carbon steels and conventional stainless steels, while the mechanical strength allows for lighter constructions, more compact system design and less welding.



Product Information

1.surface:2B
2.thickness:4mm   actual thickness:3.975mm

3.width:1219mm
4.length:2195.21m



Chemical Composition



Mn

Si

P

S

Cr

Ni

Mo

N

0-2

0-1

0-0.03

0-0.02

21-23

4.5-6.5

2.5-3.5

0.08-0.2




Mechanical Properties at Room Temperature



ASTM A 240

Typical

Yield Strength 0.2%, ksi

65 min.

74

Tensile Strength, ksi

90 min.

105

Elongation %

25 min.

30

Hardness HB

293 max.

256



Tensile Properties at Elevated Temperatures

Temperature °F

122

212

392

572

Yield Strength (0.2%), ksi

60

52

45

41

Tensile Strength, ksi

96

90

83

81







Application of deplex stainless steel

  1.  Polyethylene mixed gas cooler
  2.  Petroleum refining industry
  3.  Petrochemistry & chemical industry
  4.  Petroleum and natural gas industries
  5. The pulp and paper industry
  6.  Chemical fertilizer industry
  7.  Marine water heat exchanger & the seawater cooler tube bundle
  8. Product Sales Information:

    Size

    Diameter:10mm-1000mm

    Length:500mm-6000mm

    Origin place

    Made In China

    Delivery Condition

    Hot rolled,cold drawn,forged

    Surface require

    Black,grinding,bright,polish

    Heat treatment

    Quenched,Tempered,annealed

    Packing

    seaworthy packing ,wooden case ,carton,woven bag or at client's requires

    Delivery time

    In 10-50 days

    Trade Term

    EXW,FOB,CIF

    Payments

    T/T or L/C at sight

    Port

    China main Port,such as shanghai,Dalian,Shenzhen port.

    MOQ

    1 Ton





    Company Main Products:



    Alloy Steel

    4140,4142,42CrMo4,1.7225,SCM440,4130,SCM430,25CrMo4,1.7218,34CrNiMo6,

    1.6582,4340,SNCM439,36CrNiMo4,1.6511,SACN645,1340,SMn438,SNC236,

    Tool Steel

    H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419,

    SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2

    Bearing Steel

    GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50

    Spring Steel

    9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150,

    SUP10,51CrV4,1.8159

    Stainless Steel

    321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028,

    434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057,
