Brand Name : TSING SHAN
Model Number : DIN 1.7131 AISI 5115
Certification : ISO MTC SGS
Place of Origin : China
MOQ : 500KG
Price : 0.68 USD/KG
Payment Terms : L/C, Western Union, T/T
Supply Ability : 80000KGS
Delivery Time : 7 Days
Packaging Details : Wooden Box
Steel grade : Alloy Steel
Alloy or not : Is Alloy
Technique : Hot Rolled,Forged,Cold Drawn
Application : Structural Steel Bar
Type : Alloy Steel Bar
Standard : ASTM,DIN,AISI,JIS
Special use : Mold Steel
Shape : Round,Square
Surface : black or bright
Surface treatment : Black/Peeling/Polishing/Machined
Diameter : 12mm-650mm
Country | Europe | China | USA |
Standard | DIN | GB | AISI |
Grade | 16MnCr5/1.7131 | 16CrMnH | 5115 |
Grade | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr |
16MnCr5 | 0.14-0.19 | 0.4 | 1-1.3 | 0.025 | 0.035 | 0.8-1.1 |
5115 | 0.13-0.18 | 0.15-0.35 | 0.7-0.9 | 0.035 | 0.04 | 0.7-0.9 |
Size | Round | Dia 6-1000mm |
Plate/Flat/Block | Thickness 6mm-500mm | |
Width 20mm-1000mm | ||
Heat treatment | Normalized ; Annealed ; Quenched ; Tempered | |
Surface condition | Black; Peeled; Polished; Machined; Grinded; Turned; Milled | |
Delivery condition | Forged; Hot rolled; Cold drawn | |
Test | Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. | |
Payment terms | T/T;L/C;/Money gram/ Paypal | |
Trade terms | FOB; CIF; C&F; etc.. | |
Delivery time | 30-45 days | |
Application | 16MnCr5 is widly used for a variety of applications in the used to the gearings in rotating machinery. Typical applications such as valve bodies, pumps and fittings, the high load of wheel, bolts, double-headed bolts, gears, internal combustion engine. Electric locomotives, machine tools, tractors, steel rolling equipment, boring machine, railway vehicle, and mining machinery transmission shaft on the steel ball, roller and shaft sleeve, etc. |
6: Delivery condition
For hot forged bar, usually the delivery condition is hot forged, annealed rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed, Black surface.
For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
![]() |

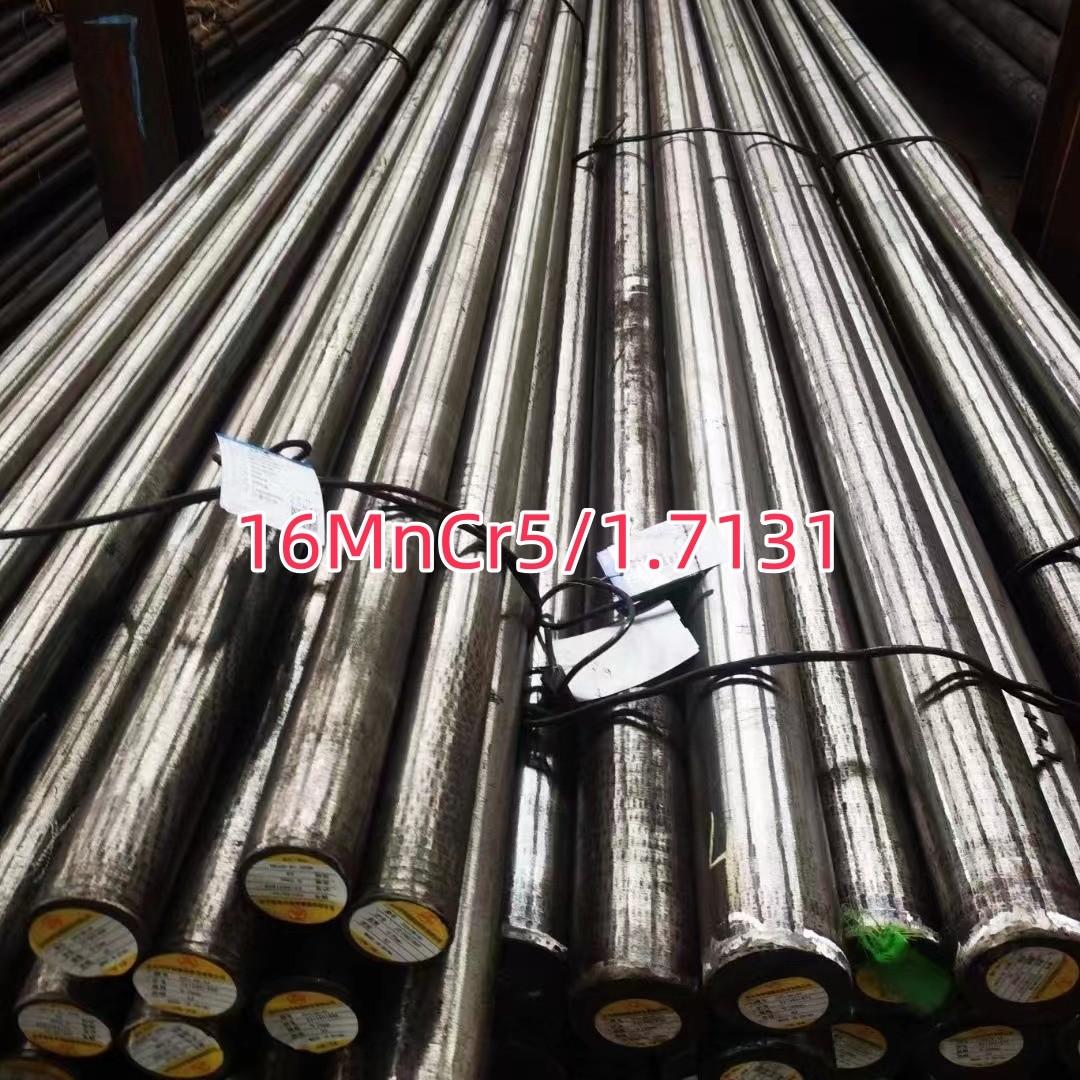

DIN 1.7131 AISI 5115 Eqivalent Material Alloy Steel 16MnCr5 Steel Round Bar Used For Bearing Images |
