EN 10346 Hot Dipped Galvanized Steel Sheet DX53D Z40 Z275

Name: EN 10346 Hot Dipped Galvanized Steel Sheet DX53D Z40 Z275
Brand: BAOSTEEL BENSTEEL HBIS
Price: 600 USD

Buy cheap EN 10346 Hot Dipped Galvanized Steel Sheet DX53D Z40 Z275 product

Brand Name : BAOSTEEL BENSTEEL HBIS

Model Number : DX53D+Z

Certification : SGS,BV,ISO

Place of Origin : China

MOQ : 5 tons

Price : 600 - 810 USD/Ton

Payment Terms : L/C, T/T,Western Union

Supply Ability : 3000 TON per month

Delivery Time : 5 days

Packaging Details : Standard export packing or as per customer’s request.

Products : Galvanized steel Coil

Zinc Coating : Z40-275 g/m2

Coil ID : 508mm / 610mm

Type : Coil / Strips

Technique : Hot dipped galvanized

Surface : regular spangle / zero spangle

Width : 1000mm 1250mm 1500mm

Service : slit cutting

Coil Weight : 5 - 10 Tons

Loading Port : Shanghai, China

Contact Now

EN 10346 :2015 Hot Dipped Galvanized Steel Coil & Sheet DX53D+Z40 - Z275 Galvanized Steel Plane Sheet

PRODUCTS SPECIFICAT

Product name	Galvanized Steel Coil
Material	ASTM A653, DX51D,DX52D DX53D DX54D SGCC
Zinc Coating	40-275g/m2
Thickness	0.2 - 3.0mm
Width	600-1500 mm
Coil ID	508/610mm
Coil weight	3-8 tons
Surface Structure	Mini/Big Spangle / Zero Spangle
Surface Treatment	Anti-Finger printing ,Chromated, oiled/ non-oiled
Package	standard export package (Detailed picture is as follows)
Hardness	soft (normal), hard, full hard(G300-G550)
HS code	721049
Country of origin	China
Business type	Supplier and manufacturer

European EN 10346 Standard Galvanized Steel Coil

Low carbon steel for cold forming (DX51D – DX54D)

DX51D is equivalent to Commercial Steel, curved and profiled
DX52D is equivalent to Forming Steel
DX53D is equivalent to Deep Drawing Steel
DX54D is equivalent to Extra Deep Drawing Steel

Structural Steels (S220GD – S350GD)

S220GD,S250GD,S280GD,S320GD,S350GD

Use structural steel for high load-bearing capacity, with a yield strength of 220-350

DX53D+Z Galvanized Steel Sheet Features

Galvanized steel sheet is widely used in various environments and has a long anti-corrosion life. The anti-corrosion life is different in different environments.
The processing cost is low, and the anti-corrosion cost of galvanized steel sheet is lower than other paint coatings.
Durable, in the suburban environment, the standard galvanized anti-corrosion layer does not need to be repaired and can be maintained for more than 50 years. In cities or offshore areas, the standard galvanized anti-corrosion coating can be maintained for 20 years without repairs.
Good reliability. The galvanized layer and the steel are metallurgically combined and become part of the rigid surface, so the durability of the coating is relatively reliable.
The coating has strong toughness, and the zinc coating forms a special metallurgical structure, which can withstand mechanical damage during transportation and use.
Integrity protection: All parts of the plated parts can be galvanized, even in recesses, sharp corners and hidden places can be fully protected.
It saves time and effort. The galvanizing construction speed is faster than other coating construction methods, which can avoid the time required for on-site painting after installation.

DX53D+Z Galvanized Steel Sheet Equivalent Material

Grade	Euronorm	China GB	Japanese JIS	US ASTM
	EN 10346:2009	GBT 2518-2008	JIS:G3302-2005	ASTM A653M
DX53D+Z	DX53D+Z	DX53D+Z	SGCD2	FS TypeA FS TypeB

DX53D+Z Galvanized Steel Sheet Standard Specification

Thickness	0.12~2.5mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length	1000-6000 or Since the custom
Surface	Normal (uneven) spangle/ Skinpassed spangle/ Regular spangle / Minimized spangles
Finish
Form	Coils, Foils, Rolls, Plain coil, Shim coil, Perforated coil, Chequered coil, Strip, Flats, Blank (Circle), Ring (Flange) etc.

DX53D+Z Galvanized Steel Sheet Metal Content

Grade	Element	C	Si	Mn	P	S	Ti
DX53D+Z	Min.	-	-	-	-	-	-
DX53D+Z	Max.	0.12	0.5	0.6	0.12	0.045	0.3

Tensile strength :270~380 MPa
Yield strength :140~260 MPa
Elongation :≥30%

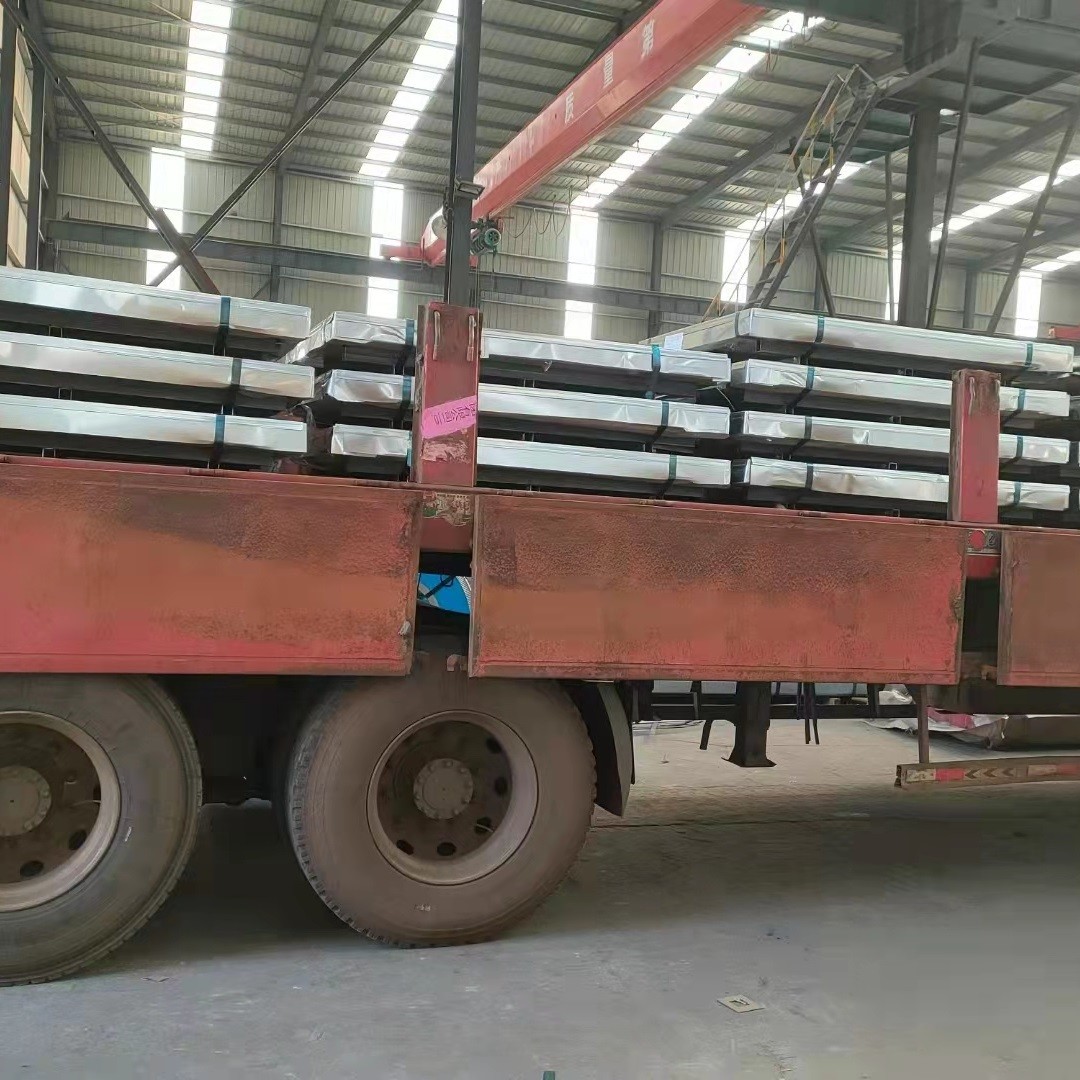

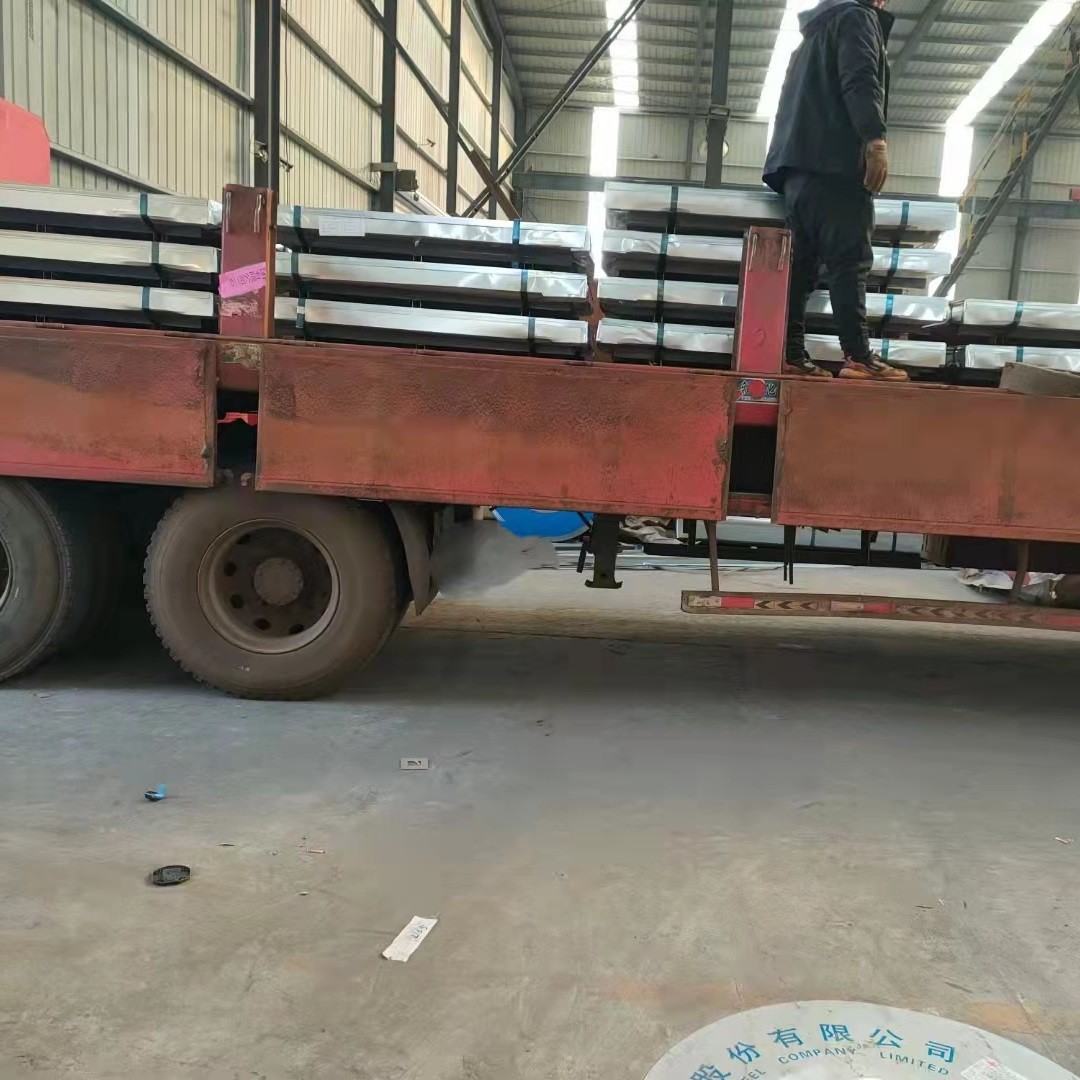

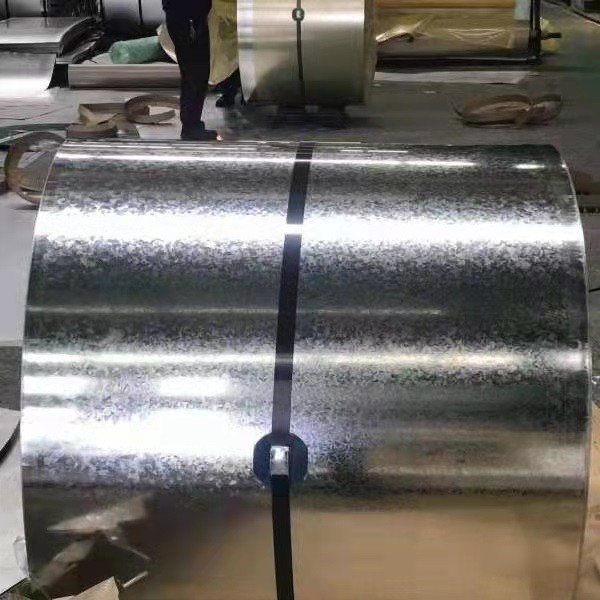

Products Show

EN 10346 Hot Dipped Galvanized Steel Sheet DX53D Z40 Z275
