ASTM A312 Seamless Wealed Pipe TP316Ti UNS S31635 ERW

Name: ASTM A312 Seamless Wealed Pipe TP316Ti UNS S31635 ERW
Brand: MITTEL TISCO BAO STEEL
Price: 3.5 USD

Buy cheap ASTM A312 Seamless Wealed Pipe TP316Ti UNS S31635 ERW product

Brand Name : MITTEL TISCO BAO STEEL

Model Number : 316Ti

Certification : SGS ISO MTC

Place of Origin : China

MOQ : 300KGS

Price : 3.5 USD/KG

Payment Terms : L/C, T/T, D/P

Supply Ability : 50000KGS

Delivery Time : 7 Days

Packaging Details : Wooden Box

Application : Industry,boiler,Chemical

Standard : DIN,ASTM,JIS,AISI

Steel grade : 300 Series,304 304L 316 316L 310S 321

Type : Seamless,Welded

Welding line type : Seamless,ERW

Thickness : 1mm-20mm

Length : 3000mm~6000mm,Customer Request

Shape : Round.square.Rectangle,Round Pipe Tube

Outer diameter : 6-630mm

Technique : Cold Drawn,Seamless/Welded

Contact Now

ASTM A213 TP316Ti Stainless Steel Seamless Pipes Range

ASTM A213 TP316Ti Stainless Steel Seamless Pipes Specification	ASTM A269, ASTM A213, ASTM A312, ASME SA269, ASME SA213, ASME SA312
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Grades	202, 304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 316LN, 317L, 321, 321H, 347, 347H, 904L, SMO 254, ALLOY 254, 6MO, 6MOLY, UNS S31254 ETC.
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Type	Seamless / Welded / ERW / EFW / Cold Draw / Hot Finish / Cold Finish
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Outer Diameter Size	Seamless - 1/2" NB TO 18" NB Welded / ERW- 1" NB TO 16" NB EFW - 8" NB TO 110" NB
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Wall Thickness	Schedule 10 to Schedule 160 (3 mm to 100 mm Thickness)
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Length	01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size.
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Ends	Plain Ends / Beveled Ends
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Delivery Conditions	As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Coating	Electropolish, Mechanical Polish, Satin Finish, Passivated
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Other Testing	Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiograph HIC Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment / Annealed / Bright Annealed
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Packaging	Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Shipment & Transportation	By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
ASTM A213 TP316Ti Stainless Steel Seamless Pipes Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Chemical Composition of ASTM A213 TP316TI Stainless Steel Seamless Pipes

The chemical composition of grade 316Ti Stainless Steel is outlined in the following table

Element	Min	Max
C	-	0.08
Si	-	0.75
Mn	-	2
P	-	0.45
S	-	0.03
Cr	16	18
Mo	2	3
N	-	0.1
Fe	Balance
Ni	10	14
Ti	5x%(C+N)

Mechanical Properties of ASTM A213 TP316TI Stainless Steel Seamless Pipes

The Mechanical Properties of grade 316Ti Stainless Steel are displayed in the following table.

Temper	Annealed
Tensile Rm	75	ksi (min)
Tensile Rm	515	MPa (min)
R.p. 0.2% Yield	30	ksi (min)
R.p. 0.2% Yield	205	MPa (min)
Elongation (2” or 4D gl)	35	% (min)

ASTM A213 TP316TI Stainless Steel Seamless Pipes Physical Properties

Physical properties of 316Ti grade stainless steel in the annealed condition

Specific Heat (0-100°C)	500	J.kg-1.°K-1
Thermal Conductivity	14.6	W.m -1.°K-1
Thermal Expansion	16.5	mm/m/°C
Modulus Elasticity	193	GPa
Electrical Resistivity	7.4	μohm/cm
Density	7.99	g/cm3

ASTM A213 TP316TI Stainless Steel Pipes Apllication

The grade 316H steel can be made into plates, sheets, and coils to be used in the following:

Food preparation equipment particularly in chloride environments.
Laboratory benches & equipment.
Coastal architectural panelling, railings & trim.
Boat fittings.
Chemical containers, including for transport.
Heat Exchangers.
Woven or welded screens for mining, quarrying & water filtration.
Threaded fasteners.
Springs.

ASTM A312 Seamless Wealed Pipe TP316Ti UNS S31635 ERW

Product Tags:

ERW Seamless Wealed Pipe

ASTM A312 Stainless Steel Seamless Tube

UNS S31635 Stainless Steel Tube

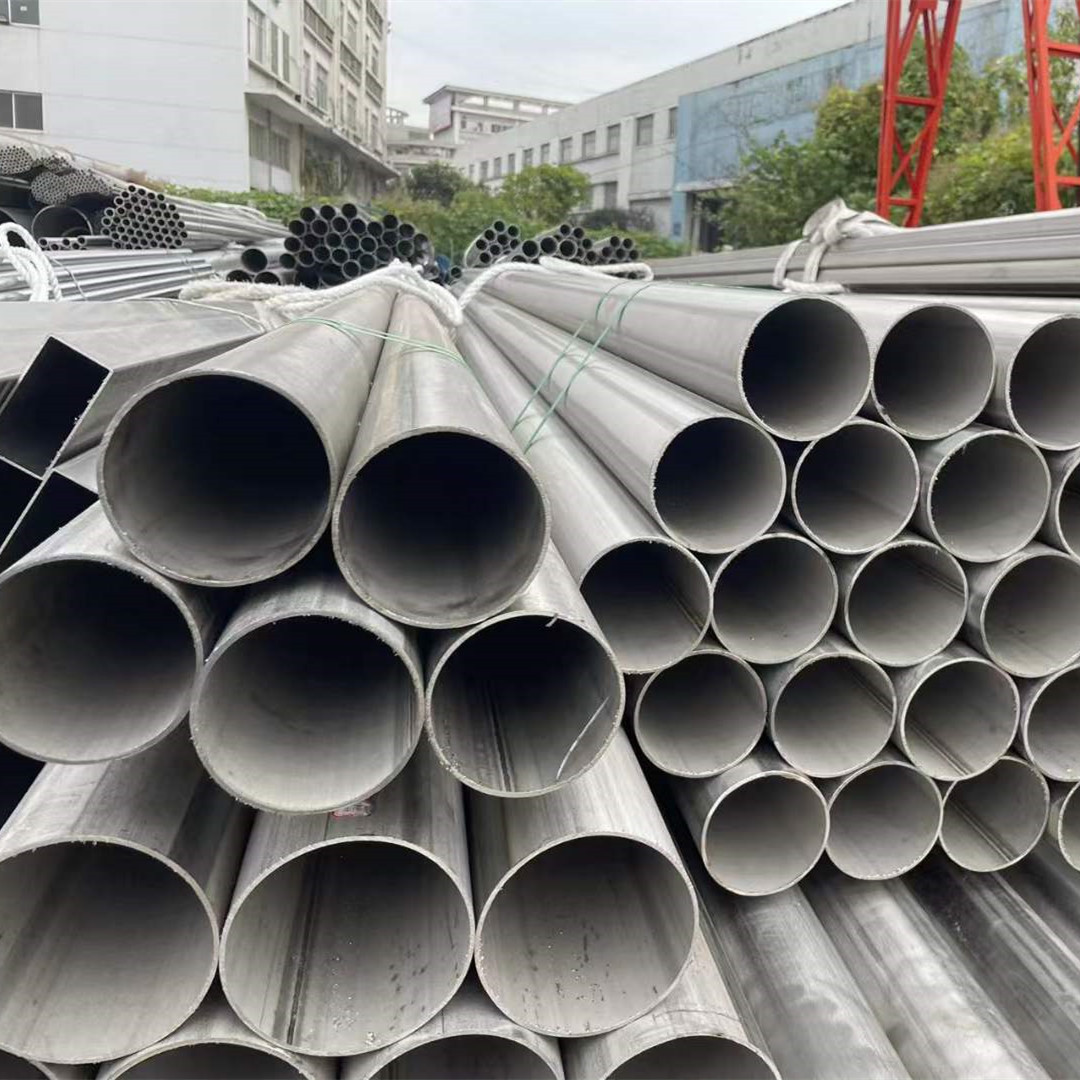

ASTM A312 Seamless Wealed Pipe TP316Ti UNS S31635 ERW Images
