Soft Magnetic Alloy 1j79 5.5mm Stainless Steel Round Bar

Name: Soft Magnetic Alloy 1j79 55mm Stainless Steel Round Bar
Brand: Mittel
Price: 25 USD

Buy cheap Soft Magnetic Alloy 1j79 5.5mm Stainless Steel Round Bar product

Brand Name : Mittel

Model Number : 1J79

Certification : ISO,BV,SGS

Place of Origin : China Wuxi

MOQ : 50KGS

Price : 25 USD/KG

Payment Terms : L/C, T/T

Supply Ability : 500000KGS

Delivery Time : 7 Working Days

Packaging Details : Wooden Pallet BOX

Type : Round

Application : Construction

Standard : DIN

Grade : 1J79

Shape : Round

Special use : Cold Heading Steel

Dimensions : 5.5mm-500mm

Technique : Cold drawn&hot rolled

Length : Customers' Requirements,or as required.,5.8m

Contact Now

Similar to the brand
GB/T	AISI/ASTM
1J79	Alloy4

Physical properties of 1J79
The density	8.6 g/cm3
Curie point	450℃

Chemical composition
Brand	%	Ni	Fe	C	Mn	Si	P	S	Cu
1J79	Min	78.5	-		0.6	0.3
1J79	Max	80.5	-	0.03	1.1	0.5	0.020	0.020	0.20

Mechanical properties of alloys at room temperature
Brand	Varieties	magnetic
Brand	Varieties	Initial permeability μO(mH/m)	Maximum permeability μm(mH/m)	Coercive force Hc (A/m)	Saturation magnetic induction intensity Bs(T)
1J79	cold-rolled belt	≥31	≥250	≤1.2	0.75
1J79	Forged (rolled) rod and plate	≥25	≥125	≤2.4	0.75

Features and applications of 1J79

Transformers, transformers, magnetic amplifiers, choke cores and magnetic shielding with high initial permeability and operating in a weak magnetic field.

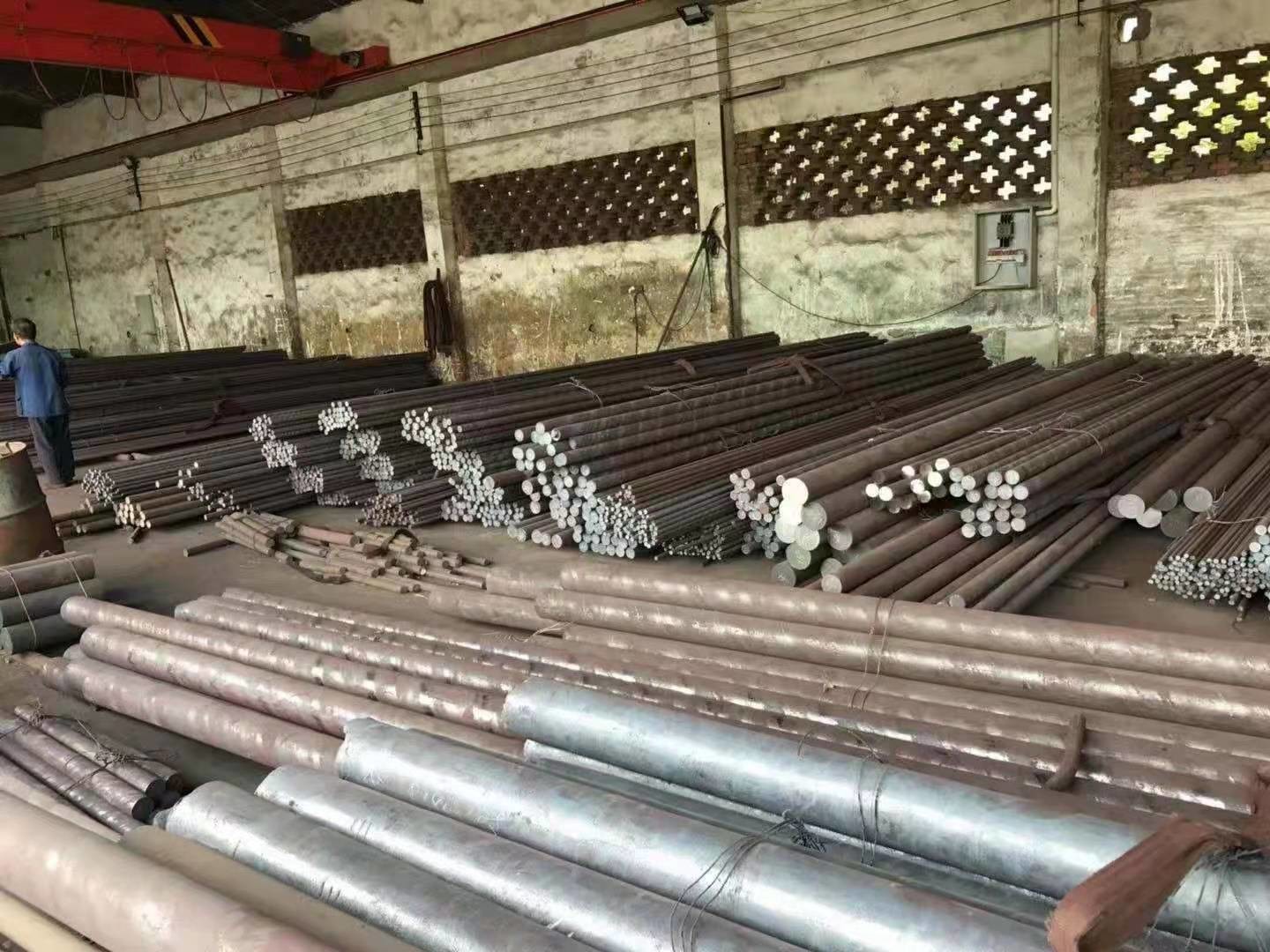

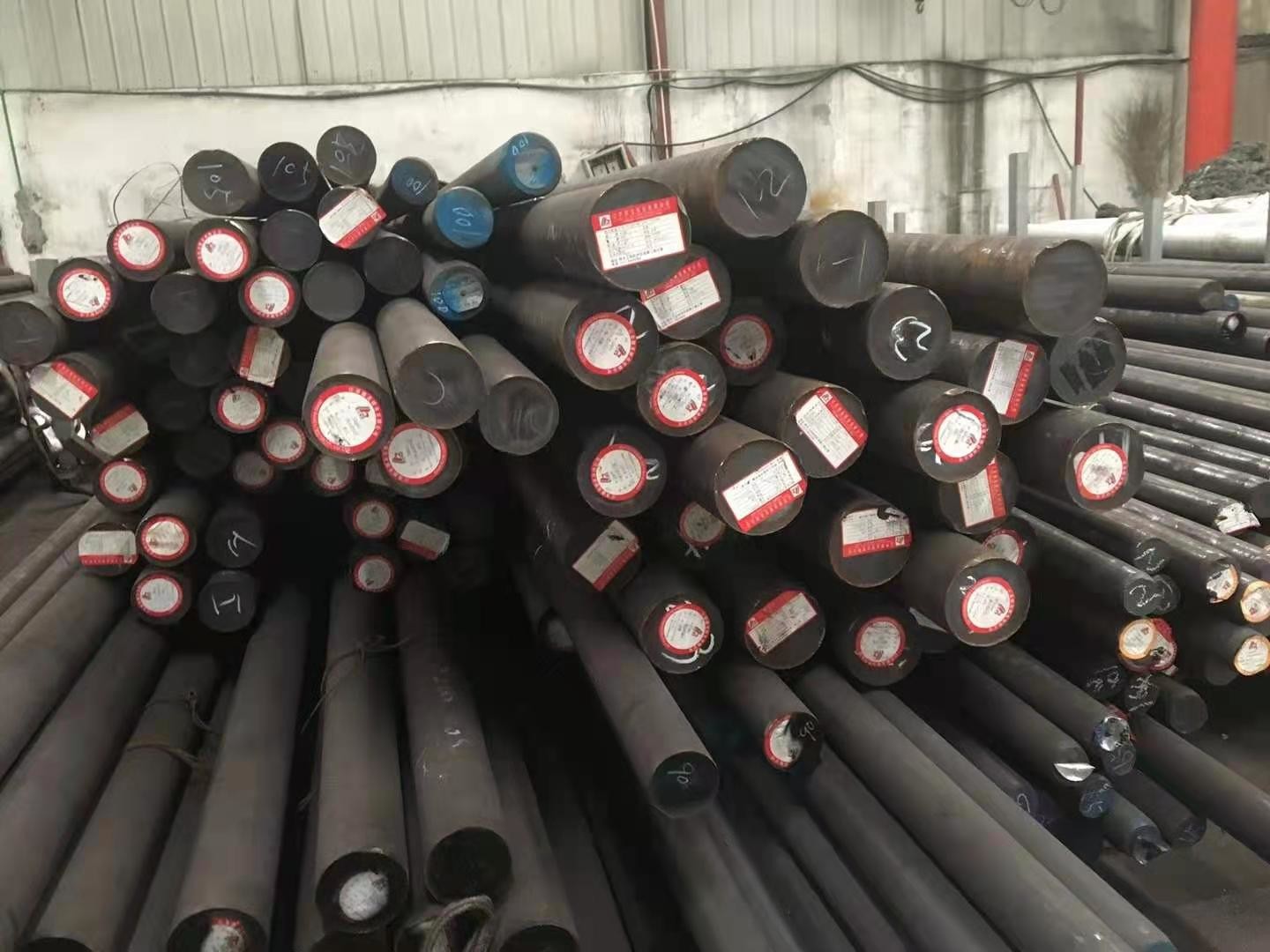

Detailed Images

Soft Magnetic Alloy 1j79 5.5mm Stainless Steel Round Bar

Product Tags:

1j79 Stainless Steel Round Bar

5.5mm Stainless Steel Round Bar

1j79 Stainless Round Bar

Soft Magnetic Alloy 1j79 5.5mm Stainless Steel Round Bar Images
